HYL-8 rapeseed sieving sorting screening machine

Product Description

HYL-8 rapeseed sieving sorting screening machine is mainly used for sieving and cleaning for corn, wheat, barley, sesame,sunflower seeds,etc. The screen mesh can be replaced as per different grain size. The cleaning rate could be 98%. It is the ideal machine for feeding farm which can separate the broken piece from the good soybeans and also can separate the mildew corn.

Working Principle

There are three screen decks of this machine. At first,the the front screen will sort out the dust and samilar impurities. Then the main fan will suck it out at last part.First screen deck is for the big impurities, second decks for cleaning grain, third decks is for broken grain and sand etc.
As per different sorting needs, there are two types of machine which one is only for cleaning and sieving. It can be discharged from outlet directly after sieving.

And another one is cleaning sieving machine with throwing device. After the grains finished cleaning, it will be casted out by Grain throwing device to realise sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. The grain granule can be thrown straight line

shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain winnower"

Main Application

This new type grain winnowing machine is suitable for grains, maize corns, wheat, sorghums, millets, rapeseeds, sunflower seeds,beans and so on. It is widely applied in the livestock breeding, small farm, small feed producing company, grain and cooking oil processing factory,wind plant,chemical plant and

pharmaceutical factory etc.

Machine Features

1. With wheels , it is very easy to move .
2. With hand crank , you can use it for manual or electric
3. The machine can be changed the punching mesh or the stainless steel mesh according to the grain granule size.
4. Multi-purpose by change the mesh or adjust the blowers so as to meet the different sieving or winnowing needs.

Technical Data

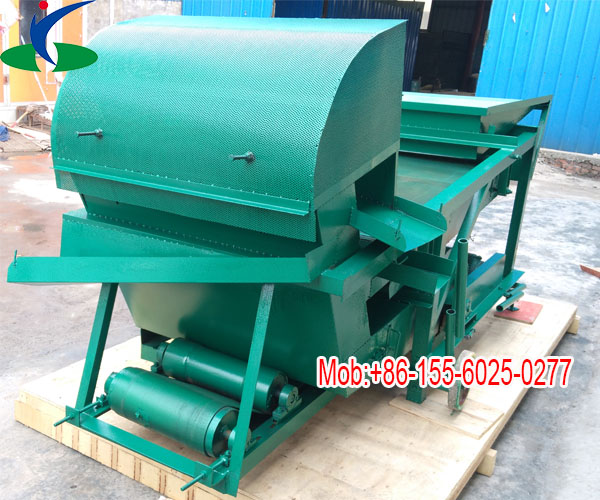

HYL-8 rapeseed sieving sorting screening machine Images
